BEACH CALOPHYLLUM, BINTAGO (Calophyllum inophyllum)

Trade Name

Beach calophyllum, Bintago

Scientific Name

Calophyllum inophyllum L.

Family

GUTTIFERAE

Common Names

c[aa]y m[uf]u (Vietnam); Krathing (Thailand); ph'ong (Myanmar); Ponnyet (Myanmar); Palomaria (Philippines); Beach calophyllum (Papua New Guinea); Penaga (Malaysia); Penaga laut (Malaysia); Bintangor (Malaysia); Dingkaran (Indonesia); Nyamplung (Indonesia)

Description Of The Tree

Botanical Description

A meddium sized tree up to 25m tall, but sometimes as large as 35m, usually with twisted or leaning bole up to 150cm in diameter, with out buttresses.

Natural Habitat

In several areas ( Peninsular Malaysia, Borneo, New Guinea) bintangor may be very aboundant and of considerable importnce for its timber. Besides traded locally. The timber and round logs are also exported to Japan. It is often common on the seashore(Sand

Natural Distribution

Eastern Africa, Madagasear, inlands of the Indian ocean, India, Sri Lanca, Myanmer,Indo-China, Thailand,Tiwan and the Ryulyu islands, thoughout Malesia,Northern Australia and the islands of the Pacific oecan.

Plantations Available?

Moderate scale plantations have been established in its range, as well as in wentern Africa and in the tropics of America.

View More Information

Wood Identification

Anatomic Description Of Wood

Vessels per mm2 6 to 10 (medium). Occasionally vessels in diagonal and/or radial pattern. Vessels exclusively solitary (over 90%). Occasionally tyloses common. Tangential diameter of vessel lumina 200 micras or more (large). Vessel-ray pits larger than the int Axial parenchyma in thick bands. Axial parenchyma bands more than 3 cells wide. Rays more than 10 per mm (abundant). Rays exclusively uniseriate. Prismatic crystals in the ray cells. Body ray cells procumbent with mostly 2 to 4 rows of upright and/or square marginal cells (Kribs-II). Septate fibers present. Fibers with simple to minutely bordered pits.

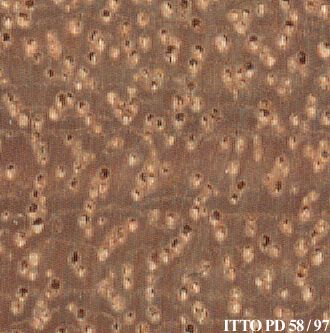

  • Wood Macro Photo Tangential Plane
  • Wood Micro Photo Of Transversal Section

Availability

Cites Status

Unrestricted

General Wood Description

Color

Sapwood, yellow-brown with a pink tinge and well defined from the heart wood, which is red-brown, pink-brown or orange-brown.

Grain

Interlocked grain.

Texture

Moderately coarse(finer than that of other Calophyllum species)

Luster

Exist

Natural Durability

More durable than that of other Calophyllum species.

Natural durability index (1= Very high durability, 7=Vey low durability)

3

Silica Content

Silica Content: Almost zero.

Resistance To Impregnation

Heart wood is resistance to preservative treatment.

Wood Physical Properties

Basic Density or Specific Gravity (O.D. weight/vol. green) (g/cm³)

0.56

Air-dry Density (Weight and volume at 12%MC) (g/cm³)

0.61

Drying Defects

Ease of Drying: Easy to season. Green conversion and quick stacking recommended .

Recommended Dry Kiln Schedule

UK-C

Wood Chemical Properties

Wood Mechanical Properties

Bending Strength (MOR),12%MC (kgf/cm²)

450

Stiffness (MOE) 12%MC (kgf/cm²)

65700

Compression parallel to fiber 12%MC (kgf/cm²)

325

Compression perpendicular to fiber 12%MC (kgf/cm²)

113

Shear strength radial 12%MC (kgf/cm²)

150

Janka hardness (side) 12%MC (kgf)

51

Janka hardness (end grain) 12%MC (kgf)

48

Workability

Sawing

Resistant to cut(more difficult to saw)

Rotary Veneer Cutting

Good

Sliced Veneer

Good

Machining

Moderate

Planing

Moderately difficult to plane

Moulding

Moderate

Boring

Easy, but sometimes liable to burning

Mortising

Easy, but sometimes liable to burning

Nailing

Moderate to poor

Sanding

Easy

Polishing

Good, when the grain is properly filled.

Substitute Species

Red meranti

REFERENCED USES

End Uses Summary

EXTERIOR GENERAL, bridges, stakes posts, HOUSING GENERAL, beams, boards, flooring, parquet, frames, panelling, FURNITURE AND CABINETS, cabinets, PLYWOOD AND VENEER, faces, Decorative veneer, PACKING, pallets, NAVAL CONSTRUCTION, boats, boat deck, OTHER AND MUSICAL INSTRUMENTS, pipe, axle, moldings
